Include on-board scaling
Provide high accuracy ratings
Offer direct connection
Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Include contact output modules
Require a chassis
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Offer analog, thermocouple, and RTD modules
Provide dual Ethernet ports for both DLR and linear topologies
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Offers flexible user memory options
Includes a built-in RS-232 serial port on every 1769-L3x controller
Supports up to 2 axes Kinematics for simple articulated robotics
Offer selectable response to a broken input sensor
Provides flexibility with DIN rail or panel mounting options
Simplify your system architecture with distributed I/O over EtherNet/IP
Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
Include I/O packet rate of 10,000 pps
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Include 832 points per module
Provides integrated safety and integrated motion in a single controller
Includes individual point diagnostic status indicators to ease troubleshooting
Address reserve, ASCII, Boolean control, and high-speed counter modules available
Include high speed input modules
Allow control migrations with re-use of existing 1769 I/O
Offer input filtering
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Provide integrated serial port
Include over-range and under-range detection and indication
Require SERCOS interface modules for motion
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Offer user memory options ranging 2 MB to 3 MB
Include autocalibration of inputs
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Support seamless bridging with data control and collection over the same network
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Supports integrated safety up to SIL 3, PLe CAT 4
Provide optical isolation
Prevents incorrect positioning of module with software keying
Removes the need for lithium batteries with built-in energy storage
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
Offers a smaller form factor for maximized cabinet space
Integrates with 1769 Compact I/O™ modules
Offers built-in communication ports for EtherNet/IP or ControlNet networks
Integrate with 1769 Compact I/O™ modules
Delivers standard, safety and motion control for On-Machine™ applications
Provides seamless bridging with data control and collection over the same network
Does not require a chassis
Include ability to direct output device operation during an abnormal condition
Available with conformal coating
Support SIL 3, PLe integrity (L4xS controllers only)
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Provide individually configurable channels
Offer a variety of AC and DC voltages

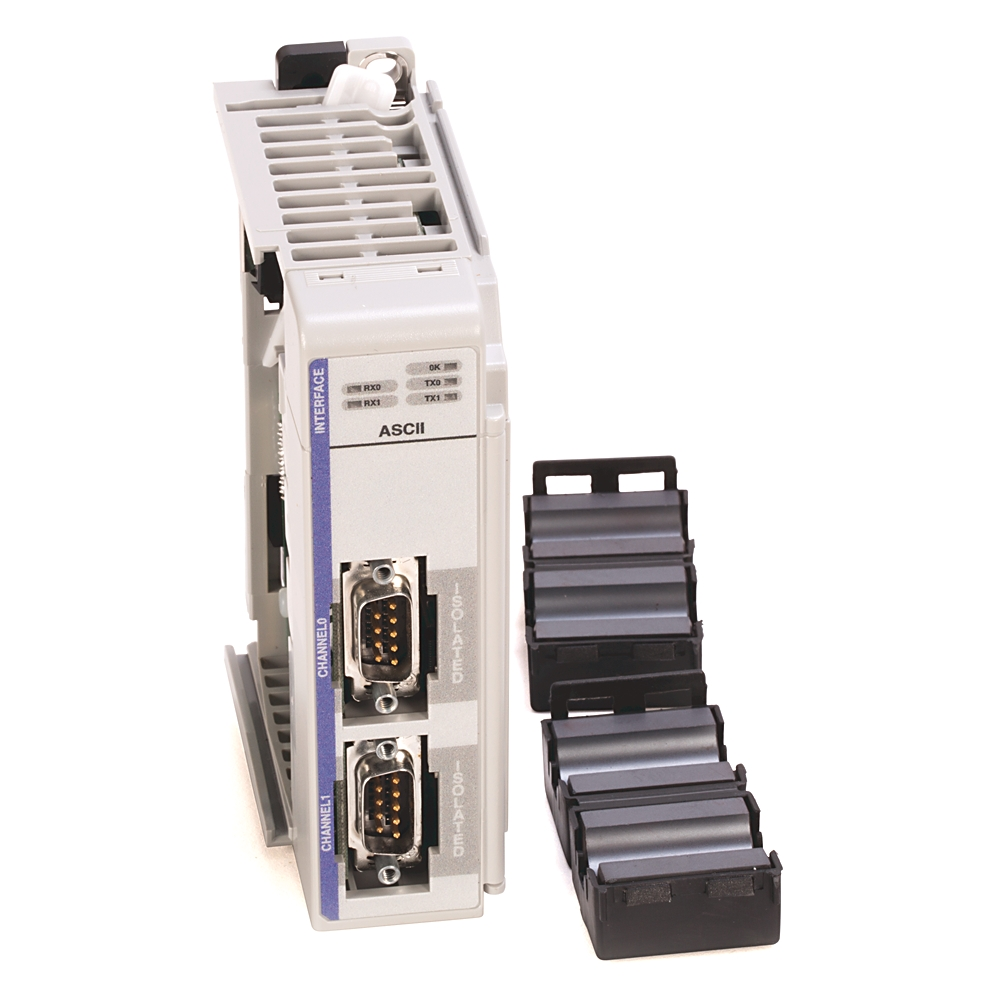

Technical Specifications
Amperage : 0.425 Amp
Applications : RS-232/485/422
Display Type : Status LEDs
Mounting Type : DIN Rail,Panel Mount
Number of Channels : 2
Operating Temperature : 0 To 60 degrees C
Power Supply : 425 mA @ 5V dc
Standard : C-TICK,CCC,CUL,GOST,KC,UL
Type : ASCII
Voltage : 3-25 VDC Supply, 0-3 VDC Input, 0-5.1 VDC Output
