Offers built-in communication ports for EtherNet/IP or ControlNet networks
Provides integrated safety and integrated motion in a single controller
Provide dual Ethernet ports for both DLR and linear topologies
Include on-board scaling
Provide optical isolation
Include 832 points per module

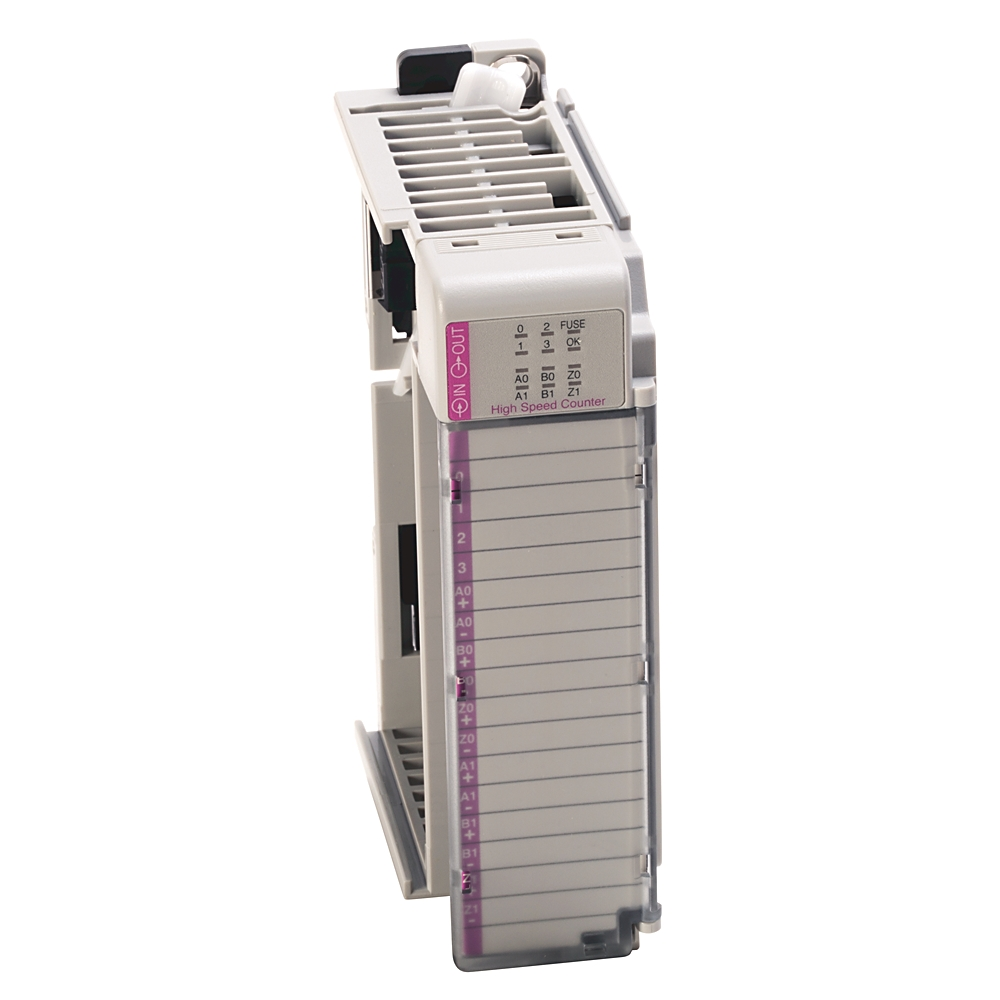

Address reserve, ASCII, Boolean control, and high-speed counter modules available
Supports up to 2 axes Kinematics for simple articulated robotics
Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
Support seamless bridging with data control and collection over the same network
Offer direct connection
Integrates with 1769 Compact I/O™ modules
Offer user memory options ranging 2 MB to 3 MB
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Require a chassis
Include over-range and under-range detection and indication
Offer input filtering
Offers a smaller form factor for maximized cabinet space
Prevents incorrect positioning of module with software keying
Includes a built-in RS-232 serial port on every 1769-L3x controller
Require SERCOS interface modules for motion
Include contact output modules
Provides flexibility with DIN rail or panel mounting options
Provide integrated serial port
Provide high accuracy ratings
Provides seamless bridging with data control and collection over the same network
Offers flexible user memory options
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Removes the need for lithium batteries with built-in energy storage
Includes individual point diagnostic status indicators to ease troubleshooting
Include autocalibration of inputs
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Offer analog, thermocouple, and RTD modules
Simplify your system architecture with distributed I/O over EtherNet/IP
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Does not require a chassis
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Offer selectable response to a broken input sensor
Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
Allow control migrations with re-use of existing 1769 I/O
Support SIL 3, PLe integrity (L4xS controllers only)
Available with conformal coating
Delivers standard, safety and motion control for On-Machine™ applications
Include high speed input modules
Integrate with 1769 Compact I/O™ modules
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
Provide individually configurable channels
Supports integrated safety up to SIL 3, PLe CAT 4
Offer a variety of AC and DC voltages
Include ability to direct output device operation during an abnormal condition
Include I/O packet rate of 10,000 pps
Technical Specifications
Display Type : Status LEDs
Enclosure : None (open-style)
Mounting Type : DIN Rail,Panel Mount
Number of Channels : 16
Operating Temperature : 0 To 60 degrees C
Power Supply : 190 mA @ 5VDC,70 mA @ 24VDC
Standard : GOST,KC
TC Connection : Plug-in
Type : Analog Input
