Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
Include over-range and under-range detection and indication
Offer analog, thermocouple, and RTD modules
Include on-board scaling
Offers flexible user memory options
Offer selectable response to a broken input sensor
Includes individual point diagnostic status indicators to ease troubleshooting
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Include autocalibration of inputs
Supports integrated safety up to SIL 3, PLe CAT 4
Provide optical isolation
Offers a smaller form factor for maximized cabinet space
Offer a variety of AC and DC voltages
Provide integrated serial port
Includes a built-in RS-232 serial port on every 1769-L3x controller
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
Support seamless bridging with data control and collection over the same network
Provides flexibility with DIN rail or panel mounting options
Delivers standard, safety and motion control for On-Machine™ applications
Allow control migrations with re-use of existing 1769 I/O
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Require a chassis
Address reserve, ASCII, Boolean control, and high-speed counter modules available
Provide dual Ethernet ports for both DLR and linear topologies
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Include high speed input modules
Offers built-in communication ports for EtherNet/IP or ControlNet networks
Supports up to 2 axes Kinematics for simple articulated robotics
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Provides seamless bridging with data control and collection over the same network
Offer direct connection
Include 832 points per module
Include ability to direct output device operation during an abnormal condition
Does not require a chassis
Include contact output modules
Prevents incorrect positioning of module with software keying
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Require SERCOS interface modules for motion
Provide high accuracy ratings
Provide individually configurable channels
Simplify your system architecture with distributed I/O over EtherNet/IP
Available with conformal coating
Integrates with 1769 Compact I/O™ modules
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Support SIL 3, PLe integrity (L4xS controllers only)
Offer user memory options ranging 2 MB to 3 MB
Offer input filtering
Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Integrate with 1769 Compact I/O™ modules
Include I/O packet rate of 10,000 pps
Removes the need for lithium batteries with built-in energy storage
Provides integrated safety and integrated motion in a single controller
Technical Specifications
Display Type : Status LEDs
Memory : 1 MB
Mounting Type : DIN Rail / Panel Mount
Output Signal : 10-30 VDC
Power Supply : 24V DC input, non-isolated, Class 2
Standard : C-TICK,CE,CUL,GOST,KC,MARINE,UL

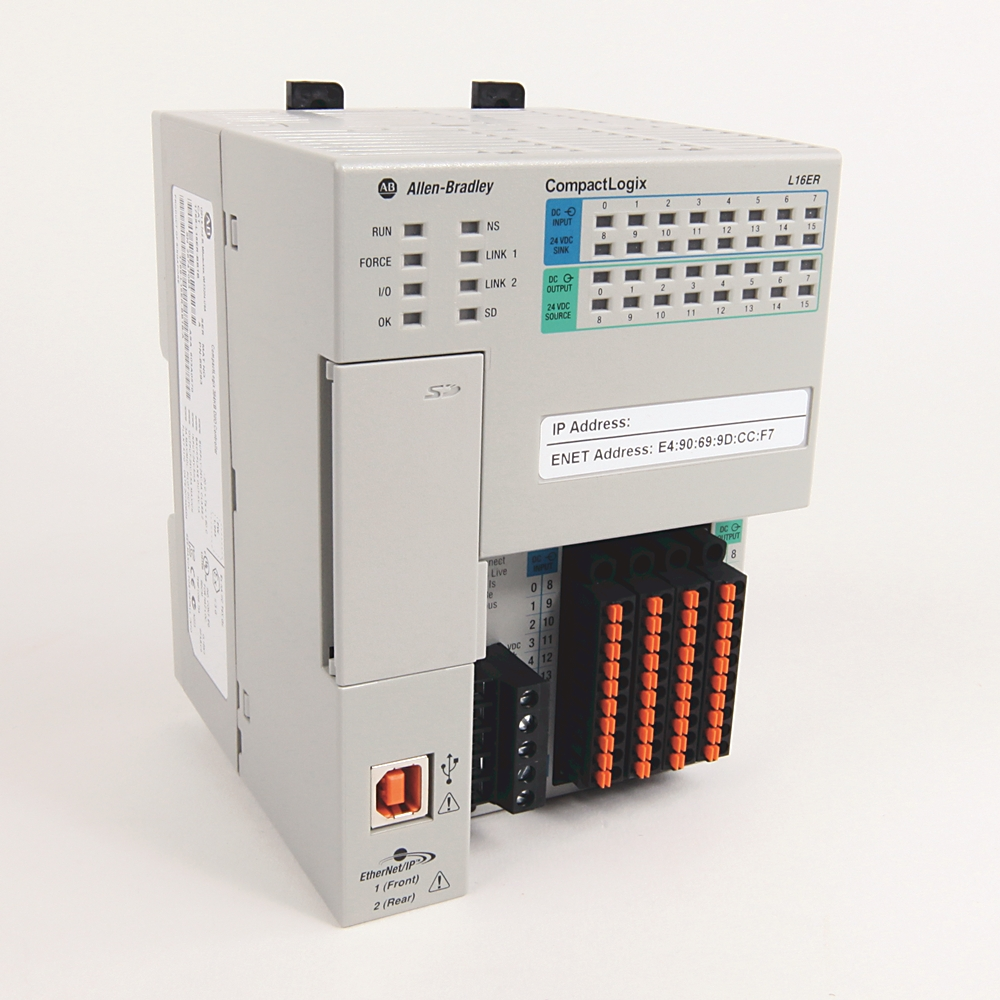

Type : Packaged Controller
