Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
Prevents incorrect positioning of module with software keying
Removes the need for lithium batteries with built-in energy storage
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Include ability to direct output device operation during an abnormal condition
Offer user memory options ranging 2 MB to 3 MB
Supports up to 2 axes Kinematics for simple articulated robotics
Offers flexible user memory options
Provides flexibility with DIN rail or panel mounting options
Offer analog, thermocouple, and RTD modules
Supports integrated safety up to SIL 3, PLe CAT 4
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Support SIL 3, PLe integrity (L4xS controllers only)
Allow control migrations with re-use of existing 1769 I/O
Offers a smaller form factor for maximized cabinet space
Includes individual point diagnostic status indicators to ease troubleshooting
Provides integrated safety and integrated motion in a single controller
Include on-board scaling
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
Provide integrated serial port
Offers built-in communication ports for EtherNet/IP or ControlNet networks
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Require a chassis
Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Simplify your system architecture with distributed I/O over EtherNet/IP
Provide high accuracy ratings
Provides seamless bridging with data control and collection over the same network
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Include high speed input modules
Include over-range and under-range detection and indication
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Provide optical isolation
Integrates with 1769 Compact I/O™ modules
Delivers standard, safety and motion control for On-Machine™ applications
Available with conformal coating
Offer input filtering
Include contact output modules
Include I/O packet rate of 10,000 pps
Offer selectable response to a broken input sensor
Include 832 points per module
Includes a built-in RS-232 serial port on every 1769-L3x controller
Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Require SERCOS interface modules for motion
Provide dual Ethernet ports for both DLR and linear topologies
Offer direct connection
Offer a variety of AC and DC voltages
Provide individually configurable channels
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Integrate with 1769 Compact I/O™ modules
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Address reserve, ASCII, Boolean control, and high-speed counter modules available
Does not require a chassis
Include autocalibration of inputs
Support seamless bridging with data control and collection over the same network

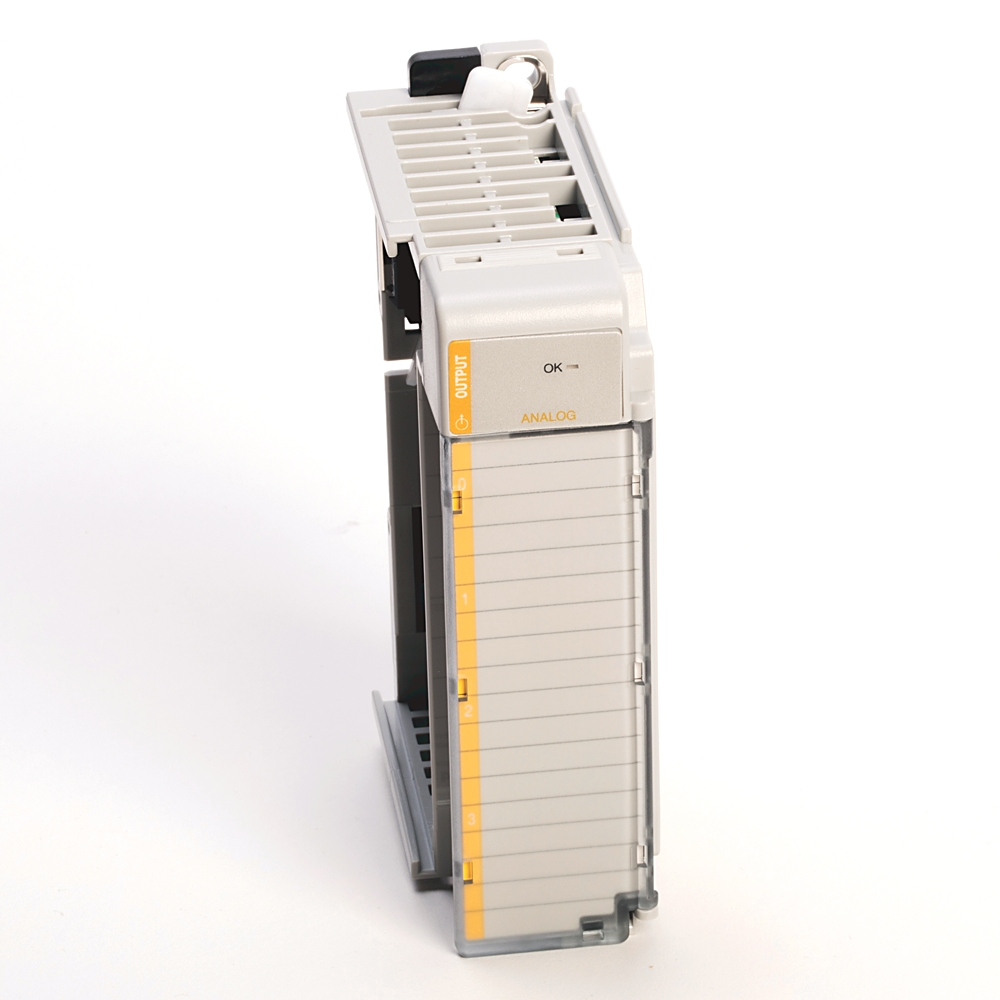

Technical Specifications
Applications : For Safety Function
Display Type : Status LEDs
Mounting Type : DIN Rail,Panel Mount
Number of Channels : 4
Operating Temperature : 0 To 60 degrees C
Output : 4 Analog
Output Signal : plus / minus 10V, 010V, 05V, 15V, 020 mA, 420 mA
Standard : CCC,GOST,KC
TC Connection : Screw
Type : Analog Output
