Supports integrated safety up to SIL 3, PLe CAT 4
Integrate with 1769 Compact I/O™ modules
Include 832 points per module
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Provide high accuracy ratings
Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
Address reserve, ASCII, Boolean control, and high-speed counter modules available
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Includes a built-in RS-232 serial port on every 1769-L3x controller
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Include contact output modules
Integrates with 1769 Compact I/O™ modules
Support SIL 3, PLe integrity (L4xS controllers only)
Require SERCOS interface modules for motion
Offers a smaller form factor for maximized cabinet space
Available with conformal coating
Include I/O packet rate of 10,000 pps
Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
Require a chassis
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Offer a variety of AC and DC voltages
Include autocalibration of inputs
Delivers standard, safety and motion control for On-Machine™ applications
Simplify your system architecture with distributed I/O over EtherNet/IP
Provide optical isolation
Removes the need for lithium batteries with built-in energy storage
Prevents incorrect positioning of module with software keying
Provide dual Ethernet ports for both DLR and linear topologies
Provide integrated serial port
Provides flexibility with DIN rail or panel mounting options
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Include ability to direct output device operation during an abnormal condition
Supports up to 2 axes Kinematics for simple articulated robotics
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Support seamless bridging with data control and collection over the same network
Offer input filtering
Includes individual point diagnostic status indicators to ease troubleshooting
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Offer analog, thermocouple, and RTD modules
Allow control migrations with re-use of existing 1769 I/O
Include high speed input modules
Provides seamless bridging with data control and collection over the same network
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
Offer direct connection
Include on-board scaling
Offers built-in communication ports for EtherNet/IP or ControlNet networks
Offers flexible user memory options
Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Provides integrated safety and integrated motion in a single controller
Include over-range and under-range detection and indication
Does not require a chassis
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Provide individually configurable channels
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Offer user memory options ranging 2 MB to 3 MB
Offer selectable response to a broken input sensor

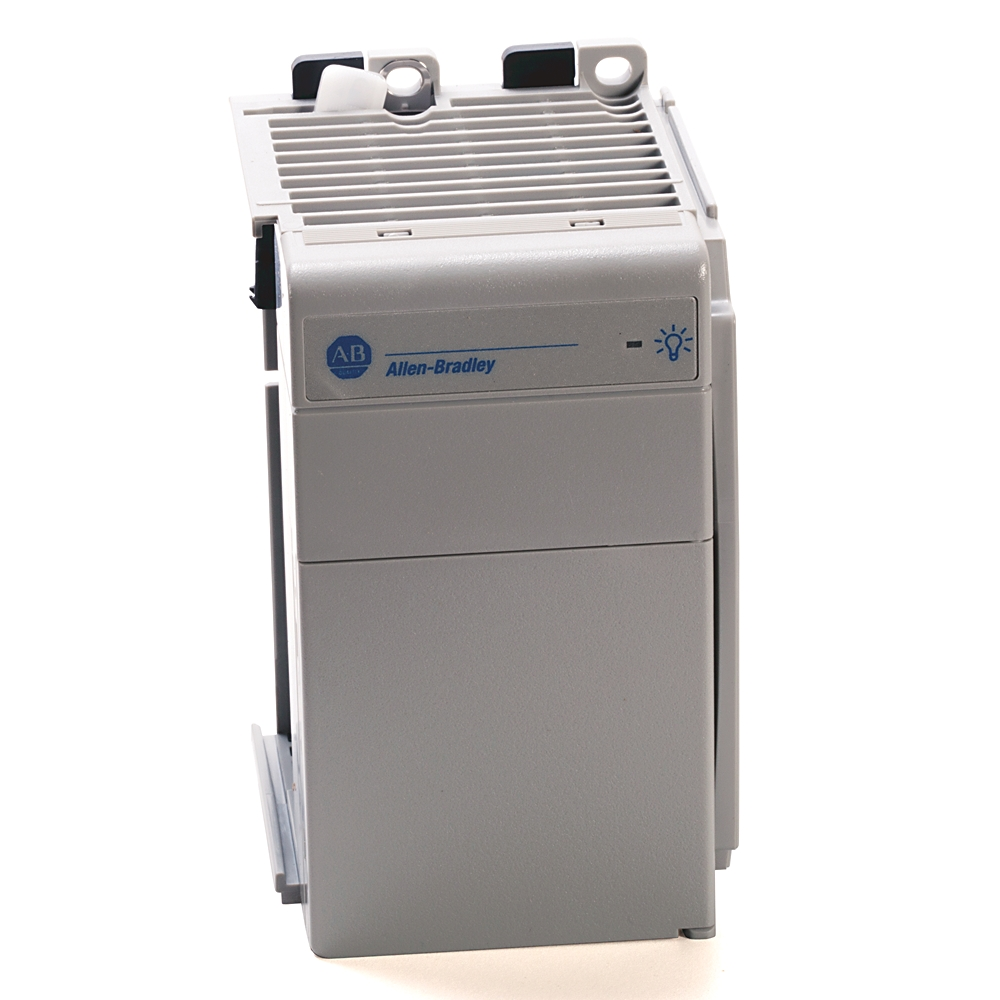

Technical Specifications
Amperage : 2 Amp, 25 Amp
Display Type : Status LEDs
Enclosure : None (open-style)
Frequency : 47-63 Hz
Input Voltage : 85 - 265 VAC at 50/60 Hz
Mounting Type : DIN Rail,Panel Mount
Operating Temperature : 0 To 60 degrees C
Output Voltage : 5 - 24 VDC
Standard : C-TICK,CUL,GOST,KC,MARINE,UL
Type : Power Supply
