Includes a built-in RS-232 serial port on every 1769-L3x controller
Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
Provide integrated serial port
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Supports up to 2 axes Kinematics for simple articulated robotics
Supports integrated safety up to SIL 3, PLe CAT 4
Include over-range and under-range detection and indication
Provide dual Ethernet ports for both DLR and linear topologies
Support seamless bridging with data control and collection over the same network
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Provide optical isolation
Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Include autocalibration of inputs
Offer a variety of AC and DC voltages
Provide high accuracy ratings
Offer input filtering
Require SERCOS interface modules for motion
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Removes the need for lithium batteries with built-in energy storage
Provide individually configurable channels
Does not require a chassis
Include contact output modules
Available with conformal coating
Offer direct connection
Require a chassis
Offer user memory options ranging 2 MB to 3 MB
Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
Allow control migrations with re-use of existing 1769 I/O
Offer analog, thermocouple, and RTD modules
Prevents incorrect positioning of module with software keying
Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
Includes individual point diagnostic status indicators to ease troubleshooting
Support SIL 3, PLe integrity (L4xS controllers only)
Include high speed input modules
Include 832 points per module
Offer selectable response to a broken input sensor
Include I/O packet rate of 10,000 pps
Delivers standard, safety and motion control for On-Machine™ applications
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Offers built-in communication ports for EtherNet/IP or ControlNet networks
Address reserve, ASCII, Boolean control, and high-speed counter modules available
Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
Integrate with 1769 Compact I/O™ modules
Offers flexible user memory options
Include on-board scaling
Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
Support single network strategy to EtherNet/IP TCP/CIP connection 96
Offers a smaller form factor for maximized cabinet space
Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
Provides flexibility with DIN rail or panel mounting options
Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
Provides integrated safety and integrated motion in a single controller
Provides seamless bridging with data control and collection over the same network
Simplify your system architecture with distributed I/O over EtherNet/IP
Include ability to direct output device operation during an abnormal condition
Integrates with 1769 Compact I/O™ modules

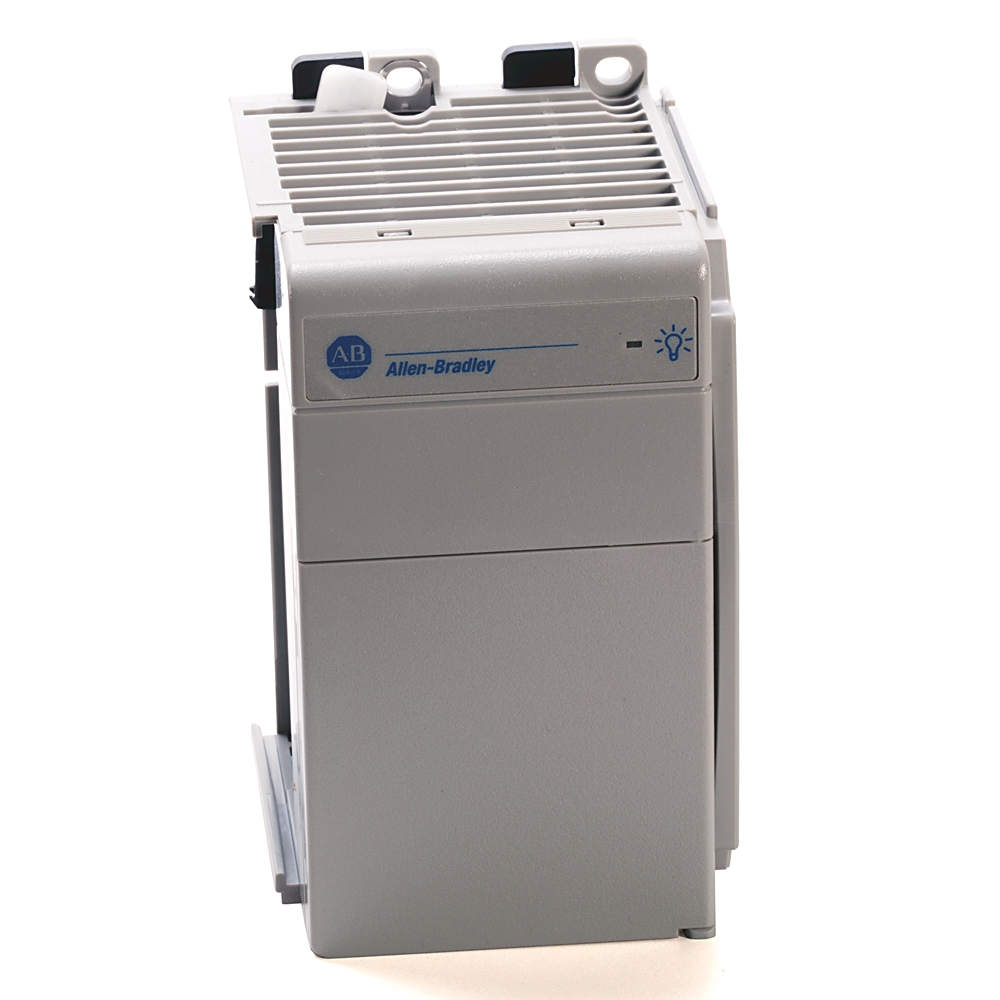

Technical Specifications
Amperage : 2 Amp at 5 VDC
Display Type : Status LEDs
Input Voltage : 19.2 - 31.2 VDC
Mounting Type : DIN Rail/Panel
Operating Temperature : 140 degrees F
Output Voltage : 24 VDC
Standard : C-TICK,CE,CUL,KC,MARINE,UL
Temperature Rating : 0 - 60 degrees C
Type : Conformal Coated
