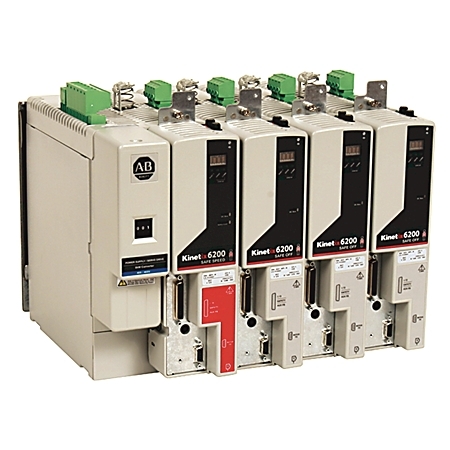

2094-BC04-M03-M

Modular design simplifies wiring, simplifies maintenance, reduces spare parts inventory, and helps you adapt quickly to technology enhancements Safer access to guarded areas while a machine or process continues operation under limited conditions Connects to business, commercial and industrial devices with no need for proprietary hardware or software Standard Ethernet eliminates need for dedicated motion network Safe Speed Monitor combines the Safe Torque-Off capability and an embedded safety relay with the Rockwell Automation® Safe-Speed Control core technology in one hardware option embedded in the drive. Certified PLe/SIL3. Dual-port embedded switch supports device-level ring (DLR) topology for EtherNet/IP™ applications Safety features include Safe Stop, Zero Speed Monitoring, Safe Direction Monitoring and Safe Maximum Acceleration Monitoring Interchangeable control modules allow axes to transition to different networks or safety functionality Reduces and monitors application speed so that an operator can safely inspect and perform limited work without completely stopping the machine Integrates with the RSLogix™ 5000 programming software (version 20 or earlier), the Studio 5000™ Automation Engineering and Design environment (version 21 and later), and select ControlLogix™ controllers Safe Torque-Off is certified at ISO 13849-1 PLe/SIL3. No external relay required to meet EN954-1 Category 3. Prevents drive restarts after the safety circuit is tripped. Safe Torque-Off is certified at ISO 13849-1 PLe/SIL3. No external relay is required to meet EN954-1 Category 3. Prevents drive restarts after the safety circuit is tripped. Safer access to guarded areas while operation continues under limited conditions Safety features include Safe Stop, Zero Speed Monitoring, Safe Maximum Speed, Safe Direction Monitoring, Door Monitoring and Control, Enabling Switch Control and Safe Maximum Acceleration Monitoring

Technical Specifications

Input Voltage : 0 - 460 VAC Output : 30A (460V Input Voltage) Standard : C-TICK,CE,CUL,KC,UL Type : Integrated Axis Module Voltage : 460 Volt Wattage : 13 kW
