Use the slim 5069-AENTR for small space requirements
Offer Integrated Motion on EtherNet/IP up to 32 axes
Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
Support up to 31 I/O modules per controller or adapter
Provide separate system power for better isolation and built-in power input with field power to I/O modules
Provide high-speed backplane communications for faster transfer rates
Provide faster safety reaction time

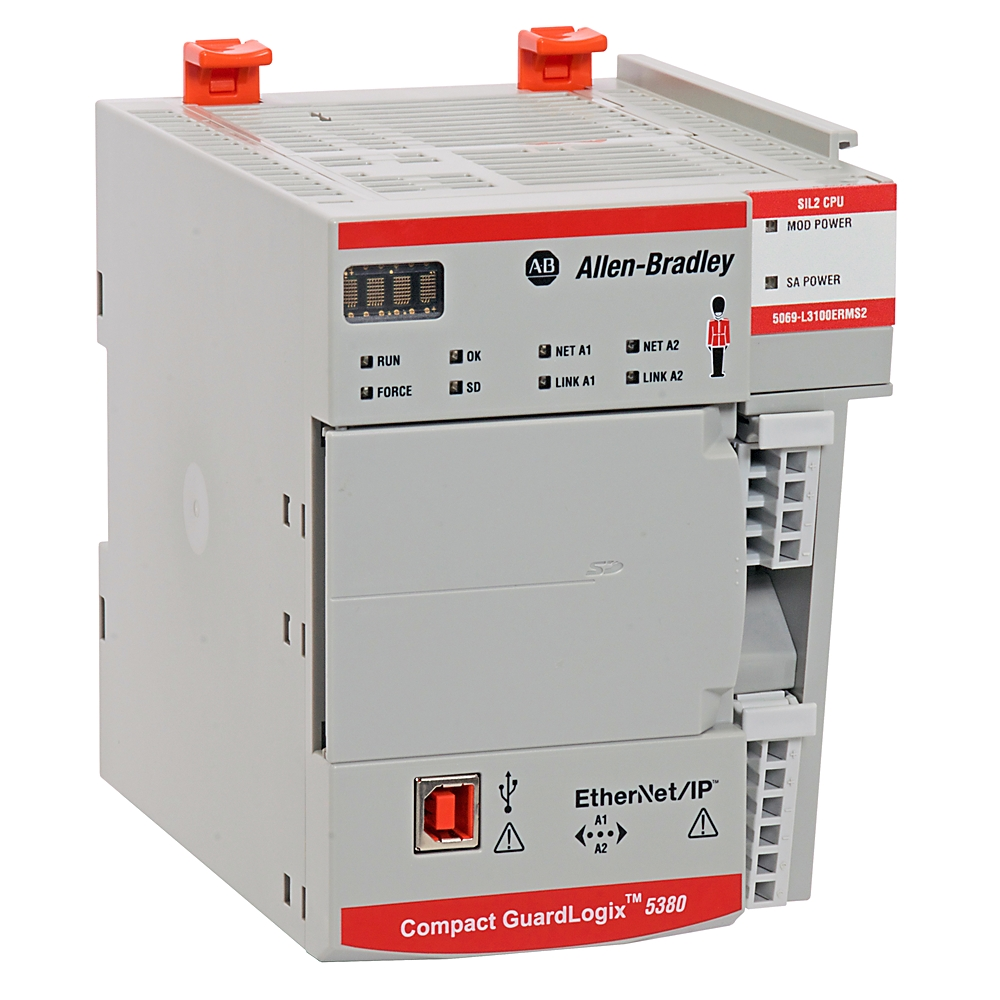

Provide a local safety connectivity to the Compact GuardLogix 5380
Include dual configurable ports that supports Dual IP address
Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
Ideal for small to mid-size applications that require low axis motion and I/O point counts
Provide enhanced diagnostics and troubleshooting
Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
Offer controller functions optimized for maximum system performance
Offer enhanced security features which include digitally-signed controller firmware, controller-based change detection, and logging and role-based access control to routines and Add-On Instructions
Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
Offer a 1 gigabit (Gb) embedded Ethernet port that enables high-speed communications, I/O, and motion control
Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
Provide enhanced diagnostics information
Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
Support up to 31 Bulletin 5069 Compact I/O™ modules
Provide improved status indicators to monitor and troubleshoot systems
Support up to 31 I/O modules
Enable high-speed I/O, motion control, and Device Level Ring/Linear Topologies
Rated up to SIL3/PLe
Technical Specifications
Display Type : 4 Digit LED Display & StatusLEDs
Memory : 0.6 MB (Standard), 0.3 MB (Safety Memory)
Mounting Type : DIN-Rail
Number of Channels : 0
Operating Temperature : 140 degrees F
Power Supply : MOD Power 1832V DC SA Power 032V DC 4763 Hz ATEX/IECEX
Standard : CE,CUL,KC,MARINE,RCM,UL
Temperature Rating : 0 - 60 degrees C
Type : 8-Point, 16 Node, 2 Axis
Voltage : 18-32 VDC, 0-32 VDC
