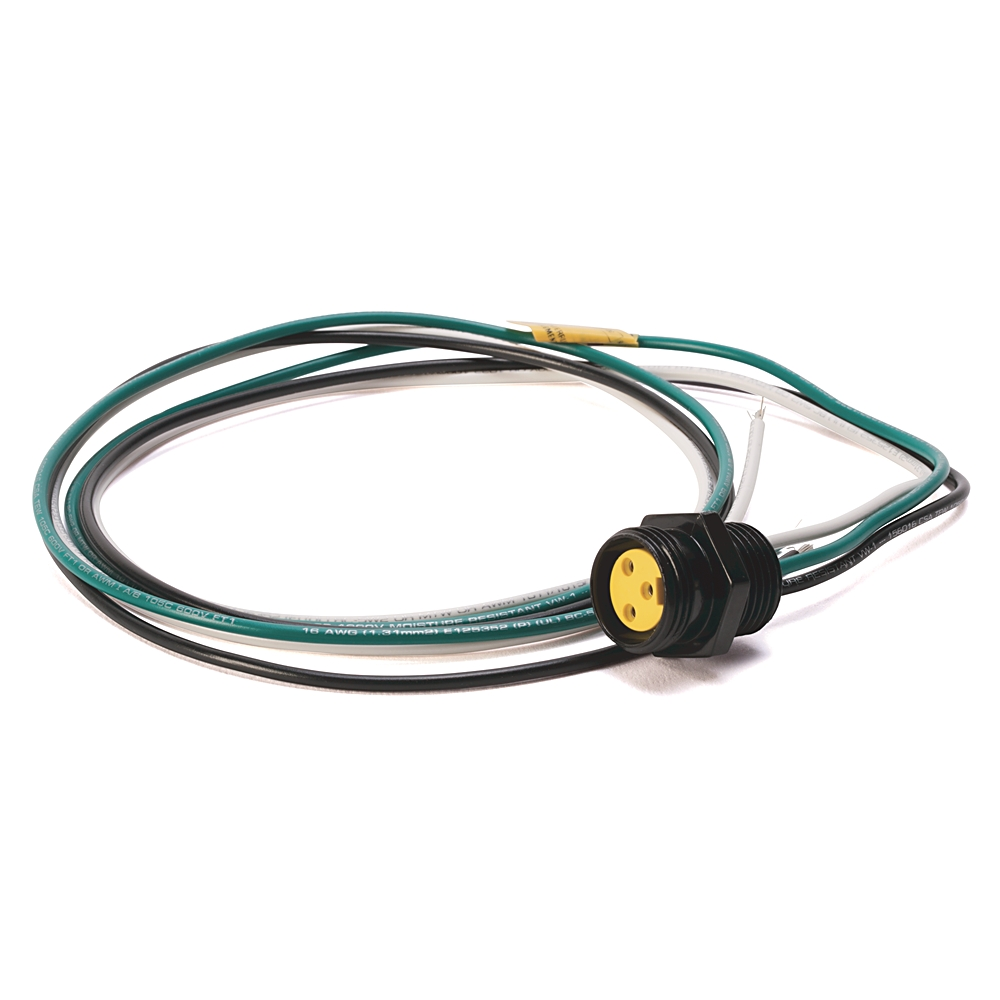

888N-F5AF1-1F

Connectors are straight or right-angled and are physically keyed to prevent wiring mishaps Includes M20 x 1.5 mounting threads for convenient mounting to safety switches Includes 1/2 in. 14 NPT threads Promote system modularity Includes 16 AWG conductors One piece molded design construction Includes a connector shell design that accommodates threaded male connector types only Includes female and male bulkhead receptacles Allows easy modification of existing cable installations Male receptacles can be used for a quick disconnect at the ArmorStart® Distributed Motor Controller with gland plate design Cabling options include cordsets and patchcords Female receptacles can be used for a panel mount connection Reduce installation cost Support systems up to Category 3 (per EN954-1) Includes I.E.C. color code Provide for Safety PLC input expansion Includes standard 22 AWG conductors Includes M8 x 0.5 mounting threads for convenient installation Provides standard US automotive color code Includes standard 12-inch lead (additional lengths available) Includes male and female bulkhead receptacles Provides 12-pin configuration provides standard connectivity Allows field installation with no hand tools needed Includes female bulkhead receptacles Includes 22 AWG conductors Provides a Viton® o-ring Includes PG9 Simplify troubleshooting Ease system expansion Control power tees offer flexibility in system design Includes mounting nut and rubber sealing washer Includes anodized aluminum shell Receptacles provide termination points at the panel and at the ArmorStart® Distributed Motor Controller

Technical Specifications

Amperage : 8 Amp Applications : 1/2 x 14 NPT Conductor Size : 16 AWG Connection Type : Mini Contact Material : Nickel, Gold Material : Aluminum Number of Conductors : 5-Pin Number of Pins : 5 Standard : CSA,KC TC Connection : Mini Temperature Rating : -20 degrees C to 105 degrees C Type : Straight, 5-Pin Voltage : 600 Volt Wire Size : 16 AWG
